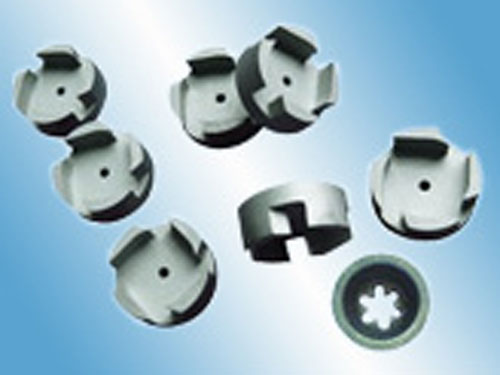

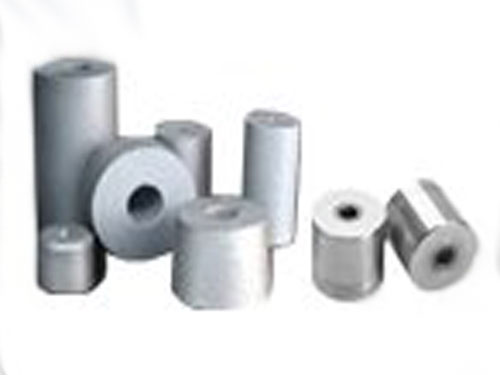

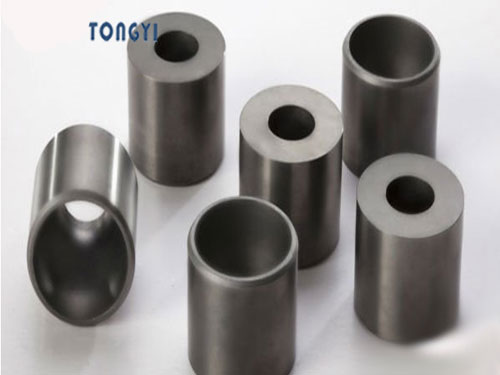

Tungsten Carbide Nozzle

Description
Tungsten carbide nozzle is made from superior carbide materials, which ensure its corrosion resistance. The hardness reaches HAR90 degree. Tungsten carbide spray nozzles are made by combining a straight hole and a limiting hole. There is a radius of curvature design at both ends. This design can ensure a smooth flowing through the nozzle body. Carbide nozzles are extensively used in sand blasting and shot blasting equipment. We provide a range of tungsten carbide spray nozzles of various sizes made in both standard and custom configurations.

Applications
Tungsten carbide nozzle is frequently used for surface treatment, sandblasting, lacquer spraying, etc. It is also applicable to surface sandblasting, rust removal decontamination of ships, bridge, container, water conservancy, machinery, pipes and other small parts.

Advantages
1. Our tungsten carbide spray nozzles are featured with high corrosion, wear resistance and long working life. This can reduce the total number of nozzles needed and reduce downtime.
2. Our carbide nozzles are sold at reasonable prices. They are more cost effective than similar products.
3. Samples and quotations are available. Fast delivery is promised.
4. We can research and develop more suitable formulas according to applications of tungsten carbide spray nozzles.

Technical Parameters of Tungsten Carbide Nozzle

Grade Equal to ISO Category Number Performance   Applications
Density Bend Strength Hardness
G/cm3 N/mm2 HRA
YG3 K01 14.9-15.3 1180 ≥ 90.5 It is qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. It can make wire drawing of steel and non-ferrous metal, also are qualified for sand-blasting nozzles.
YG3X K01 15.1-15.4 ≥ 1300 ≥ 91.5
YG6X K10 14.8-15.1 ≥ 1560 ≥ 91.0 This tungsten carbide spray nozzle is suitable for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A K10 14.7-15.1 ≥ 1580 ≥ 91.0
YG6 K20 14.7-15.1 ≥ 1670 ≥ 89.5 This carbide nozzle is suited for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.

Established in 2002, Zhuzhou Tongyi Industry Co., Ltd. has rapidly grown into one of the most prominent manufacturer of tungsten carbide spray nozzles in China. We provide a variety of carbide products, such as tungsten carbide bits, carbide buttons, carbide dies, carbide rods, carbide blanks, carbide anvils, etc. We have own factory and production lines, so we can design and produce carbide nozzles to meet customers’ exact requirements.
