X3-8/ X3-11/ X4-0/ X4-8/ X4-11/XC
Description
Tungsten carbide cutting blades are widely appreciated by our clients for their sturdy construction and durability. These carbide inserts are manufactured using superior grade components and raw material that are procured from the best sources of the industry. They are tested on well-defined parameters by quality controllers to ensure the flawlessness and quality of our tungsten carbide cutting blades. We are able to design and produce inserts of different configurations and also provide custom products. Standard carbide inserts are available in stock, such as X3-8, X3-11, X4-0, X4-8, X4-11 and XC.
Applications
Tungsten carbide cutting blades are essentially used for sawing tough alloys, such as cobalt, nickel, zirconium and titanium based metal with extremely good surface finish. Higher cutting rates can be achieved in cutting stainless steel, high alloy and tool steels.
Features
1. Our tungsten carbide inserts are featured with high performance and corrosion resistance.
2. By avoiding changing inserts frequently, it can reduce downtime and maximize the production.
3. Tongyi tungsten carbide cutting blade has a longer working life with a lower maintenance cost.
4. Our products are strictly examined on varied industrial parameters before final packaging.
5. Our company has been certified by ISO 9001:2008. The quality of our carbide inserts is ensured.
6. Tungsten carbide cutting blades offered by us are available at market leading prices.
5. We are able to make custom products in our factories.
6. Samples and quotations are available and fast delivery is promised.
Technical Parameters

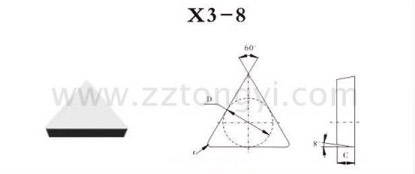

X3-8
| Model | Dimension | |||
| D=L | Allowable Deviation | C±0.13 | r | |
| X307058 | 7.34 | ±0.08 | 3.3 | 0.5 |
| X310058 | 10.34 | ±0.08 | 3.85 | 0.5 |
| X313058 | 13.34 | ±0.13 | 4.85 | 0.5 |
| X313108 | 13.34 | ±0.13 | 4.85 | 1.0 |
| X316058 | 16.5 | ±0.18 | 5.85 | 0.5 |
| X316108 | 16.5 | ±0.18 | 5.85 | 1.0 |

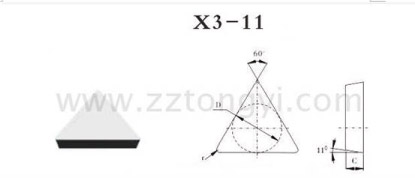

X3-11 Tungsten Carbide Cutting Blade
| Model | Dimension | |||
| D=L | Allowable Deviation | C±0.13 | r | |
| X3070511 | 7.34 | ±0.08 | 3.3 | 0.5 |
| X3100511 | 10.34 | ±0.13 | 3.85 | 0.5 |
| X3130511 | 13.45 | ±0.13 | 4.85 | 0.5 |
| X3131011 | 13.45 | ±0.13 | 4.85 | 1.0 |
| X3160511 | 16.5 | ±0.18 | 5.85 | 0.5 |
| X3161011 | 16.5 | ±0.18 | 5.85 | 1.0 |

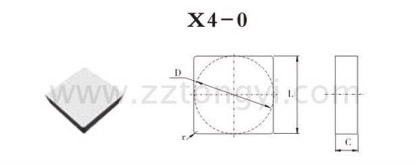

X4-0 Tungsten Carbide Cutting Blade
| Model | Dimension | ||
| D=L | C±0.13 | r | |
| X410050 | 10.4±0.08 | 3.85 | 0.5 |
| X413050 | 13.4±0.13 | 4.85 | 0.5 |
| X413100 | 13.4±0.13 | 4.85 | 1.0 |
| X416050 | 16.5±0.18 | 4.85 | 0.5 |
| X416100 | 16.5±0.18 | 4.85 | 1.0 |
| X419100 | 19.6±0.18 | 5.85 | 1.0 |
| X419200 | 19.6±0.18 | 5.85 | 2.0 |
| X425100 | 25.6±0.25 | 7.35 | 1.0 |
| X425200 | 25.6±0.25 | 7.35 | 2.0 |
| Model | Dimension | ||
| D=L | C±0.13 | r | |
| X4150058 | 10.4±0.08 | 33.3 | 0.5 |
| X413058 | 13.4±0.13 | 3.85 | 0.5 |
| X413058T | 13.4±0.13 | 4.85 | 0.5 |
| X413108T | 13.4±0.13 | 4.85 | 1.0 |
| X416058 | 16.5±0.18 | 4.85 | 0.5 |
| X416108 | 16.5±0.18 | 4.85 | 1.0 |
| X416158 | 16.5±0.18 | 4.85 | 15 |
| X419108 | 19.6±0.18 | 5.85 | 1.0 |
| X419208 | 19.6±0.18 | 5.85 | 2.0 |
| X425108 | 25.6±0.25 | 7.35 | 1.0 |
| X425208 | 25.6±0.25 | 7.35 | 2.0 |
| Model | Dimension | ||
| D=L | C±0.13 | r | |
| X4150058 | 10.4±0.08 | 33.3 | 0.5 |
| X413058 | 13.4±0.13 | 3.85 | 0.5 |
| X413058T | 13.4±0.13 | 4.85 | 0.5 |
| X413108T | 13.4±0.13 | 4.85 | 1.0 |
| X416058 | 16.5±0.18 | 4.85 | 0.5 |
| X416108 | 16.5±0.18 | 4.85 | 1.0 |
| X416158 | 16.5±0.18 | 4.85 | 15 |
| X419108 | 19.6±0.18 | 5.85 | 1.0 |
| X419208 | 19.6±0.18 | 5.85 | 2.0 |
| X425108 | 25.6±0.25 | 7.35 | 1.0 |
| X425208 | 25.6±0.25 | 7.35 | 2.0 |

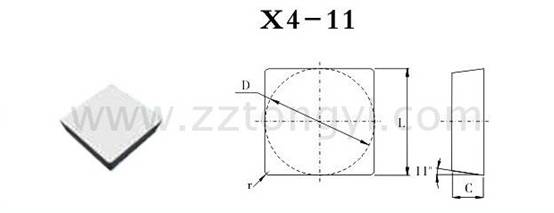

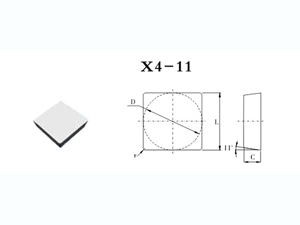

X4-11 Tungsten Carbide Cutting Blade
| Model | Dimension | ||
| D=L | C±0.13 | r | |
| X4100511 | 10.4±0.08 | 3.3 | 0.5 |
| X4130511 | 13.4±0.13 | 3.85 | 0.5 |
| X4130511T | 13.4±0.13 | 4.85 | 0.5 |
| X4131011T | 16.5±0.15 | 4.85 | 1.0 |
| X4160511 | 16.5±0.15 | 4.85 | 0.5 |
| X4160511-B | 16.4+0.05-0.08 | 4.9+0.05-0.08 | 0.5 |
| X4160511A-B | 16.3+0.05-0.08 | 5.1+0.05-0.08 | 0.5 |
| X4161011A | 16.5±0.18 | 5.10 | 0.5 |
| X41610011 | 16.5±0.18 | 4.85 | 1.0 |
| X4161511 | 16.5±0.18 | 4.85 | 1.5 |
| X4191011 | 19.5±0.18 | 5.85 | 1.0 |
| X4192011 | 19.5±0.18 | 5.85 | 2.0 |
| X4251011 | 25.6±0.25 | 7.35 | 1.0 |
| X4252011 | 25.6±0.25 | 7.35 | 2.0 |

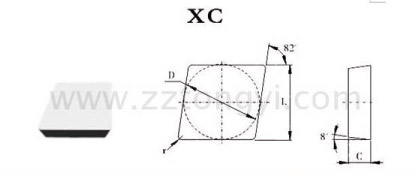

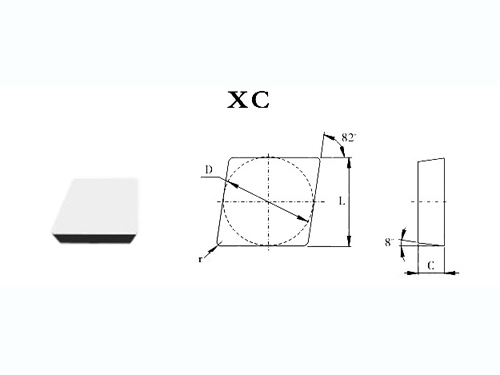

XC Tungsten Carbide Cutting Blade
| Model | Dimension | ||
| D=L | C±0.13 | r | |
| XC161008 | 16.5±0.2 | 4.8 | 0.1 |
Zhuzhou Tongyi Industry Co., Ltd., founded in 2002, is one of the most prominent manufacturers of tungsten carbide inserts in China. Our products are widely recognized by many major manufacturers both home and abroad. We produce a full range of carbide products, including carbide drill bits, carbide drawing dies, tungsten carbide rods, carbide blanks, carbide anvils, etc. Our carbide cutting blades have been exported to many countries such as the United States, Canada, Vietnam, Indonesia, Philippines, Poland, Russia, Ukraine, etc. We have our own factory and are able to produce custom products for your need.
