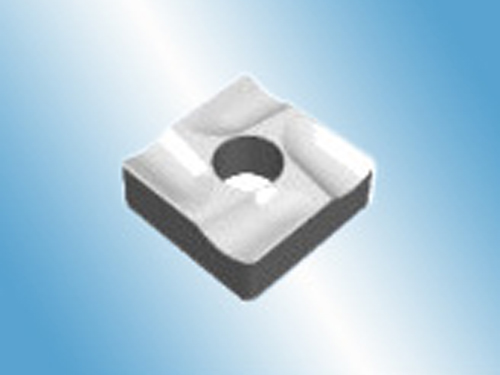

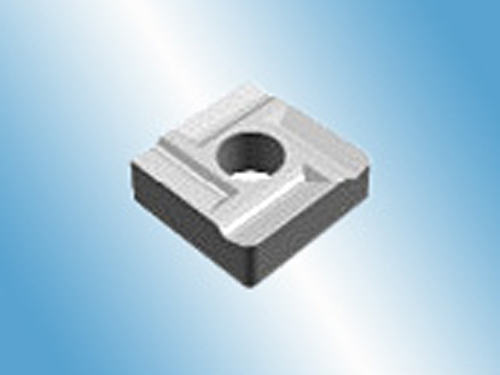

4-A/4-D/4-H/C-H Tungsten Carbide Cutting Blade

Description
4-A/4-D/4-H/C-H tungsten carbide inserts are broadly used by manufacturers to cut metal and non-metal materials. Because of their hardness, wear resistance and heat resistance, they are recognized by many users. We provide a full range of carbide turning blades which can be made in both standard and custom configurations.

Applications
Tungsten carbide inserts are suitable for cutting aluminum and nonferrous alloys. They are essentially used for cutting tough alloys, such as cobalt, nickel, zirconium and titanium based metal with extremely good surface finish.

Advantages of Tungsten Carbide Turning Blade
1. Longer durability is a typical advantage.
2. We are able to offer a full range of tungsten carbide inserts. They are developed using the modern machines and advanced technology in order to ensure the quality in accordance with ISO standards.
3. Higher cutting rates can be achieved in cutting stainless steel, high alloy and tool steels.
4. A wide range of carbide turning blades are available in stock at market leading rates.
5. Special backing material of our tungsten carbide inserts increases fatigue resistance at high cutting speed.
6. We also provide custom service to meet client’s specific needs. Samples and quotations are available if needed. Fast delivery is promised.

Technical Parameters

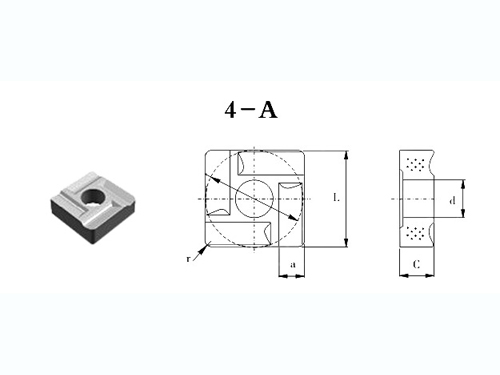

4-A

Model Dimension
Right Left D=L C±0.13 D±0.13 r a≈
41005A 41005AZ 10±0.08 3.5 4.2 0.5 2.4
41305A 41305AZ 13±0.13 4.5 5.2 0.5 3.4
41315A 41315AZ 13±0.13 4.5 5.2 1.5 3.4
416105A 416105AZ 16±0.18 5.5 6.2 0.5 4.0
41610A5 41610A5Z 16±0.18 5.5 62 1.0 5.4
41905A 41905AZ 19±0.18 7.0 7.2 0.5 5.4
42520A 42520AZ 25±0.25 80 82 1.0 8.2

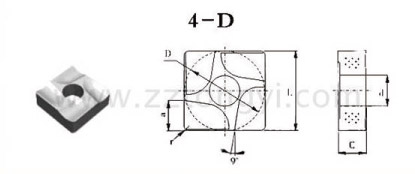

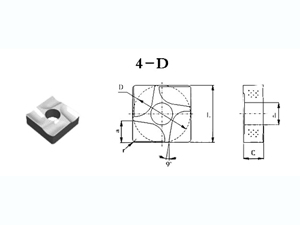

4-D
Model Dimension
Right Left D=L C±0.13 D±0.13 r a≈
41610D6 41610D6Z 16±0.18 5.5 6.2 1.0 6
41920D7 41920D7Z 19±0.18 7.0 4.2 2.0 7
42220D8 42220D8Z 22±0.25 8.5 8.2 2.0 5.4

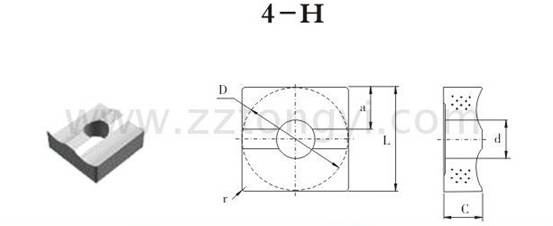

4-H
Model Dimension
D=L C±0.13 D±0.13 r a≈
41005H 10±0.08 3.5 4.2 0.5 2.4
41305H 13±0.13 4.5 5.2 0.5 3.4
41605H 16±0.18 5.5 6.2 0.5 4.4
41605H6 16±0.18 5.5 6.2 0.5 6.0
41905H 19±0.18 7.0 7.2 0.5 5.4
41910H 19±0.18 7.0 7.2 1.0 5.4
41910H7 19±0.18 7.0 7.2 1.0 7.0
42210H8 22±0.25 8.5 8.2 1.0 8.0
42510H7 25±0.25 8.5 8.2 1.0 7.0
42510H8 25±0.25 8.5 8.2 1.0 8.0
42510H10 25±0.25 8.5 8.2 1.0 10.0

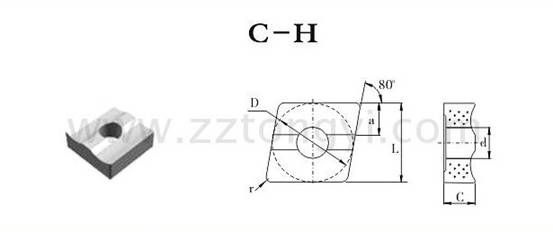

C-H
Model Dimension
Right Left D=L C±0.13 D±0.13 r a≈
C1305H4 C1305H4Z 13±0.13 4.5 5.2 0.5 4.5
C1305H5 C1305H5Z 13±0.13 4.5 5.5 0.5 5.4
C1610H6 C1610H6Z 16±0.18 5.5 6.2 1.0 6.4
C1910H6 C1910H6Z 19±0.18 7.2 7.2 1.0 6.4
C1910H7 C1910H7Z 19±0.18 7.2 7.2 1.0 7.4
