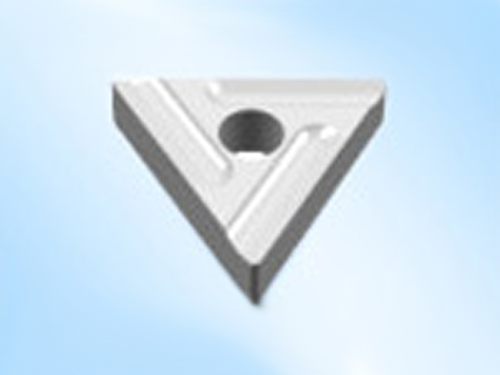

3-A/3-C/3-D/3-N Tungsten Carbide Cutting Blade

Description
3-A/3-C/3-D/3-N tungsten carbide inserts are used for machining extremely tough materials. They are made from high quality tungsten carbide and have superior wear resistance. There is a wide range of carbide turning inserts of different sizes and grades that are suitable for different applications. Our carbide inserts are noted for their excellent wear resistance, corrosion resistance, heat resistance and long working life. We also provide custom service to our clients.

Applications
This carbide turning insert generally designed to cut hardwood flooring, cast iron, stainless steel, fiberglass materials, ceramic tile, stone, plaster, etc. Different grades of tungsten carbide inserts are suitable for cutting different materials.

Advantages
1. This type of carbide turning insert is made from raw material and with sophisticated design. They can bear extreme workload.
2. Our company has our own factories and mass production is possible within a short term.
3. Our carbide inserts can be made in both in standard and custom configurations. We are able to manufacture products according to your design.
4. Samples and quotations are available if needed. Fast delivery is promised.
5. This carbide turning insert is used for fast, clean, precise metal cutting.
6. Our insert is tempered, straightened, tensioned and balanced, endowing it premium quality.
7. Carbide inserts will not produce spark or smoke while working. No coolant is needed.

Technical Parameters

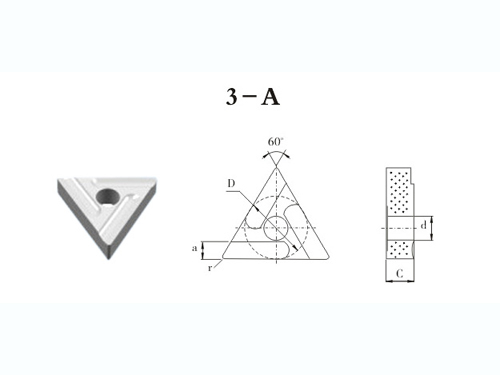

3-A

Model Dimension
Right Left D C±0.13 d±0.13 r a≈
31005A 31005AZ 10±0.08 4.5 4.2 0.5 2.4
31305A 31305AZ 13±0.13 5.5 5.2 0.5 3.4
31305A4 31305A4Z 13±0.13 5.5 5.2 0.5 4.4
31605A 31605AZ 16±0.18 7.0 6.2 0.5 4.4
31605A5 31605A5Z 16±0.18 7.0 6.2 0.5 5.4
31905A 31905AZ 19±0.18 8.5 7.2 0.5 5.4

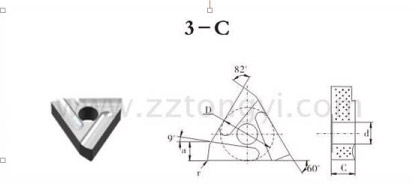

3-C
Model Dimension
Right Left D C±0.13 d±0.13 r a≈
31003C 31005CZ 10±0.18 4.5 4.2 0.3 2.4
31303C 31305CZ 13±0.13 5.5 5.2 0.3 3.4
31303C5 31305C5Z 13±0.13 5.5 5.2 0.3 5
31603C 31605CZ 16±0.18 7.0 6.2 0.3 4.4
31603C6 31605C6Z 16±0.18 7.0 6.2 0.3 6
31905C 31905CZ 19±0.18 8.5 7.2 0.5 5.4

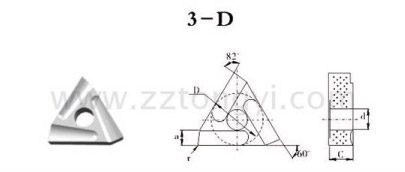

3-D
Model Dimension
Right Left D C±0.13 d±0.13 r a≈
31003D 31005DZ 10±0.18 4.5 4.2 0.3 2.4
31303D 31305DZ 13±0.13 5.5 5.2 0.3 4.4
31303D5 31305D5Z 13±0.13 7.0 5.2 0.3 5.4
31603D 31605DZ 16±0.18 7.0 6.2 0.3 5.4
31905D 31905DZ 19±0.18 8.5 7.2 0.5 6.4

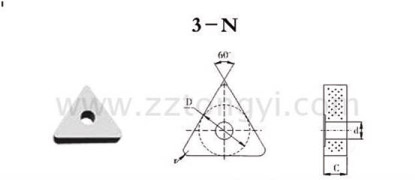

3-N
Model Dimension
D C±0.13 d±0.13 r a≈
31005N 10±0.08 4.5 4.2 0.5
31305N 13±0.13 5.5 5.2 0.5
31605N 13±0.13 7.0 6.2 0.5
31610N 13±0.13 7.0 6.2 1.0
31910N 19±0.18 8.5 7.2 1.0
31920N 19±0.18 8.5 7.2 2.0
